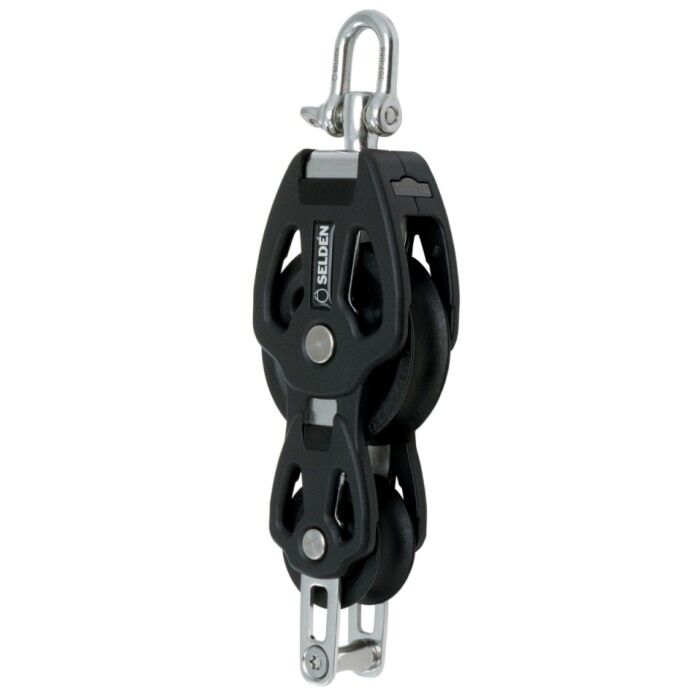

Selden PBB60 Fiddle Block with Becket 60 mm – Plain Bearing
Details
The Selden PBB60 fiddle block with becket (406-001-12) is designed for efficient load handling in sailing applications where additional purchase is required. Thanks to the integrated becket, this block allows more complex rope systems such as mainsheet tackles and boom vang setups.
Built for durability, the block combines a stainless steel reinforcement strap with fibre-reinforced composite cheeks. This construction ensures high strength, low maintenance and prevents rope jamming under load. The plain bearing design makes it particularly suitable for high static loads and controlled trimming.
The 60 mm acetal sheaves provide smooth rope movement, while the swivel head with sliding locking mechanism allows flexible alignment or fixed positioning depending on the installation.
Key features:
- Fiddle block with integrated becket (PBB60 series)
- Sheave diameter: 60 mm
- Maximum line diameter: 14 mm
- Safe working load: 1000 kg
- Breaking load: approx. 2000–2200 kg
- Weight: approx. 270–330 g
- Pin and shackle diameter: 6 mm
Applications on board:
- Mainsheet systems with increased purchase
- Boom vang systems
- Halyard adjustment systems
- Mast base and masthead installations
A reliable solution for sailors looking to create efficient multi-part tackle systems under high load.
More Information
| Becket | Yes |
|---|---|
| Bearing | Plain bearing |
| Cam cleat | No |
| Max rope diameter | 36447 |
| Number of sheaves | 2 |
| Ratchet | No |
| Supplier ref | 406-001-12R |
| Manufacturer ref | 406-001-12R |
| EAN code manufacturer | 7350044270734 |
| Block type | Fiddle |
| Diameter sheave block | 23755 |
| Brand | Selden |
| Product weight (kg) | 0.3000 |
| Swivel | Yes |
| Breaking load block | 2000 kg |
