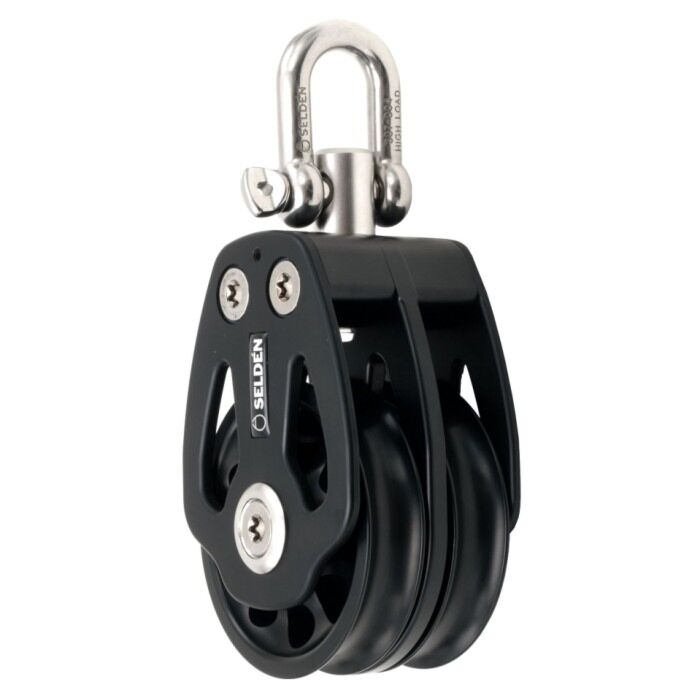

Selden PBB100 Double Block 100 mm – Plain Bearing

The Selden PBB100 double block (410-001-04) is engineered for extreme load applications where high mechanical advantage and maximum strength are required. With two 100 mm sheaves, this block enables powerful 4:1 tackle systems, making it ideal for mainsheet, vang and heavy-duty control setups on larger yachts.

As part of the Selden PBB100 plain bearing range, this block is specifically designed for professional rigging and high static load applications. It delivers controlled trimming performance combined with exceptional durability.

The block features machined, black anodised aluminium sheaves with polymer (acetal) bushings and two axial Delrin® bearings. These stabilise the sheaves when the rope runs at an angle, ensuring smooth operation and reduced wear under extreme loads.

The robust construction includes anodised aluminium cheeks and stainless steel load components, with insulation between materials to prevent corrosion and extend service life.

With a safe working load of 4000 kg and a breaking load of 8000 kg, this block is built for the most demanding sailing conditions.

Key features:

• Heavy-duty double block (PBB100 series)
• Sheave diameter: 100 mm
• Maximum line diameter: 20 mm
• Safe working load: 4000 kg
• Breaking load: 8000 kg
• Purchase ratio: 4:1
• Weight: approx. 1562 g
• Pin diameter: 12 mm
• Shackle diameter: 12 mm
• Aluminium sheaves with Delrin® side-load bearings

Applications on board:

• High-load mainsheet systems (4:1)
• Boom vang systems
• Cascade and multi-part tackle systems
• Heavy-duty halyard and control systems
• Professional rigging setups

A top-tier block for sailors and riggers who need maximum mechanical advantage, strength and reliability under extreme load conditions.
