Boîtes à réas Spinlock T50

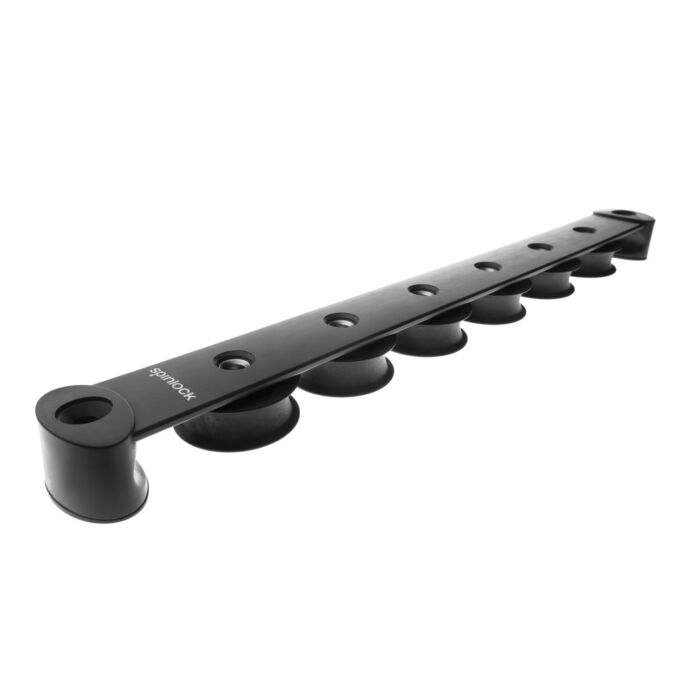

Spinlock T50 Organiser

Spinlock T-Series Organisers lead multiple lines back from the mast to banks of powerclutches.

·         Minimal overall length
·         Efficient bearings surface reduces winch effort and increases halyard life
·         Integral end fairings for safe side loading
·         Asymmetric version reduces deck footprint and saves weight
·         T50 can ‘stack’ for limited deck area or adding extra capacity. T50 will also ‘stack’ on a TC50
·         Vari-camber feature: T50 Organisers are designed to follow the curve of the deck when fitted

Sheave Diameter/Type
50mm (2") composite
SWL per sheave
1000kg (2200lbs)
Total SWL per unit
No of sheaves x500kg (1100lbs)
Line Diameter
Up to 14mm (9/16")
