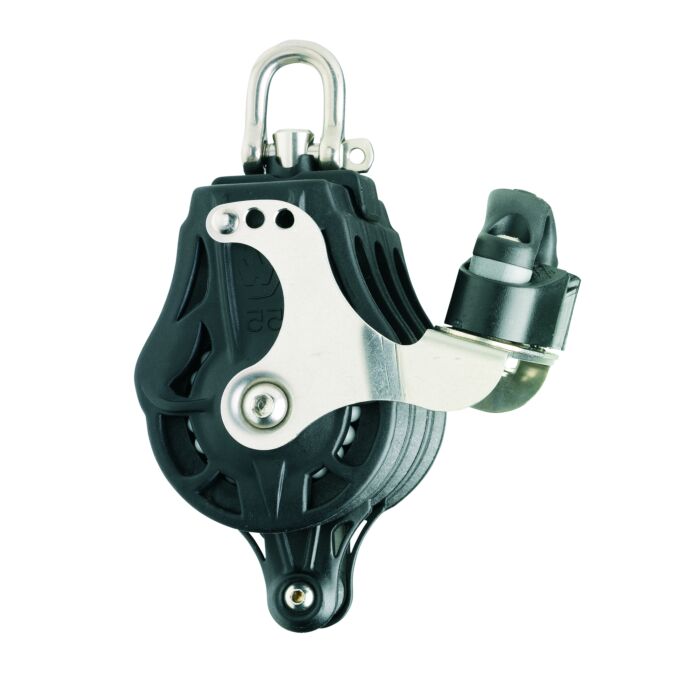

Wichard Triple ball bearing blok Schijf 35mm Swivel head becket & cam

Wichard Ball bearing blocks / sheave 35 / triple / with swivel head, becket and cam

Commentary

• Complete range of ball bearing blocks
• Modern design
• Innovative design with two lateral races of ball bearings
• Smooth running for low load adnhigh speed action
• Under high load the hub runs on  stainless steel bush which allows the sheave to run freely
• Light cheeks protecting the sheave
• Wide choice of fastenings thanks to the universal head

Applications

• Mainsheet systems
• Boom vang

Material

• Grade 316L stainless steel head configuration
• Grade 316L stainless steel load straps
• Polycarbonate flanges
• Composite saddle for cam models
• Delrin ball bearings
• Composite sheave

Features
Weight	202 g
Sheave diameter	35 mm
Shackle diameter	5 mm
Length	101 mm
Width	66 mm
Thickness	60 mm
Working load	200 Kg
Breaking load	1000 Kg
