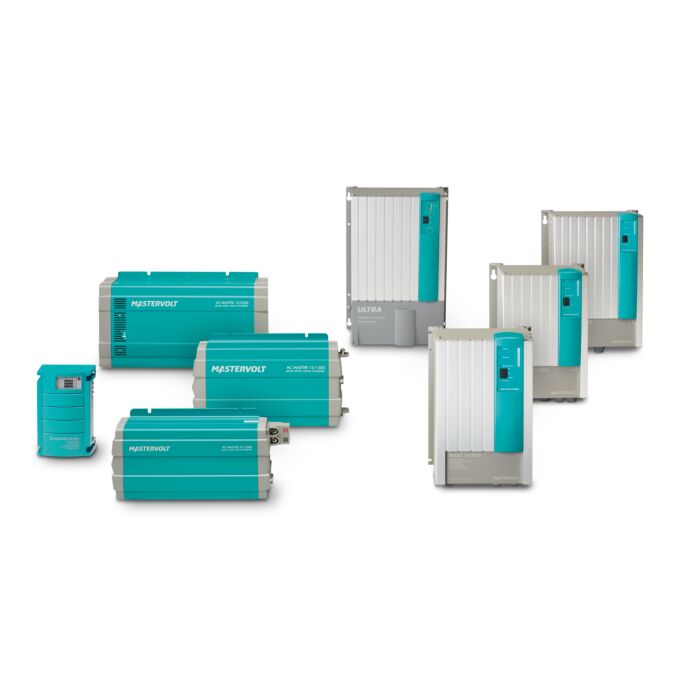

AC Master Specifications 12V | AC Master 12/300 | AC Master 12/500 | AC Master 12/700 | AC Master 12/1000 | AC Master 12/1500 | AC Master 12/2500 | AC Master 12/3500 |
Article number | 14662050 | 14662051 | 14662052 | 14662053 | 14662054 | 14662055 | 14662056 |
Product code | 28010300 | 28010500 | 28010700 | 28011000 | 28011500 | 28012500 | 28013500 |
| | | | | | | |
General specifications | | | | | | | |
Output voltage | 230V - 50Hz (± 0,1 %) | 230V - 50Hz (± 0,1 %) | 200/220/230/240V - 50/60Hz (selectable) | 200/220/230/240V - 50/60Hz (selectable) | 200/220/230/240V - 50/60Hz (selectable) | 230/240V - 50/60Hz (selectable) | 230/240V - 50/60Hz (selectable) |
Output waveform | true sine | true sine | true sine | true sine | true sine | true sine | true sine |
Nominal battery voltage | 12V | 12V | 12V | 12V | 12V | 12V | 12V |
Recommended battery capacity | >= 60Ah | >= 100Ah | >= 100Ah | >= 130Ah | >= 160Ah | >= 270Ah | >= 360Ah |
Continuous power at 25°C / 77°F, cos phi 1 | 300W | 500W | 700W | 1000W | 1500W | 2500W | 3500W |
Continuous power at 40°C / 104°F, cos phi 1 | 250W | 400W | 700W | 1000W | 1500W | 2500W | 3500W |
Peak load | 600W | 800W | < 810W (1 min.) / < 1230W (1 sec.) | < 1150W (1 min.) / 1750W (1 sec.) | 1730W (1min.) / 2650W (1 sec.) | < 300W (1 min.) / < 4000W (1 sec.) | 4500W (1 min.) / 6000W (1 sec.) |
AC connection | universal | universal | plug connection EU (Schuko) or UK | plug connection EU (Schuko) or UK | plug connection EU (Schuko) or UK | hardwired + plug connection EU (Schuko) | hardwired + plug connection EU (Schuko) |
Efficiency | 90% | 90% | 91% | 92% | 93% | 88% | 90% |
Parallel configuration | n.a. | n.a. | n.a. | n.a. | n.a. | yes, up to 15 units | yes, up to 15 units |
3-Phase configuration | n.a. | n.a. | n.a. | n.a. | n.a. | yes, 3 units | yes, 3 units |
Display/read-out | LED display | LED display | LED indication: battery voltage, load level, status | LED indication: battery voltage, load level, status | LED indication: battery voltage, load level, status | LED indication: battery voltage, load level, status | LED indication: battery voltage, load level, status |
Dimensions, H x W x D | 210 x 130 x 60mm/8,3 x 5,1 x 2,4 inch | 210 x 130 x 60mm/8,3 x 5,1 x 2,4 inch | 200 x 330 x 83mm/7,9 x 13 x 3,3 inch | 200 x 372 x 83mm/7,9 x 14,6 x 3,3 inch | 248 x 421 x 83mm/9,8 x 16,6 x 3,3 inch | 283 x 436 x 128mm/11,1 x 17,2 x 5 inch | 283 x 436 x 128mm/11,1 x 17,2 x 5 inch |
Weight | 1,16kg/2,55lb | 1,22kg/2,69lb | 2,7kg/6lb | 3,3kg/7,3 lb | 4,2kg/9,3lb | 8kg/17,6lb | 10kg/22lb |
Alarms | 4 alarm modes | 4 alarm modes | potential free alarm contact | potential free alarm contact | potential free alarm contact | potential free alarm contact | potential free alarm contact |
Approvals | CE, E-mark, ABYC A-31 | CE, E-mark, ABYC A-31 | CE, E-mark, RCM | CE, E-mark, RCM | CE, E-mark, RCM | CE, E-mark, RCM | CE, E-mark, RCM |
| | | | | | | |
Technical specifications | | | | | | | |
Technology | high frequency, input & output fully isolated | high frequency, input & output fully isolated | high frequency, input & output fully isolated | high frequency, input & output fully isolated | high frequency, input & output fully isolated | high frequency, input & output fully isolated | high frequency, input & output fully isolated |
Input current (nominal load) | 22,5A | 37,5A | 70A | 100A | 150A | 250A | 350A |
No-load power consumption (energy saving mode) | 0,33A - 4W | 0,33A - 4W | < 0,1A | < 0,1A | < 0,1A | < 1,1A | < 1,4A |
Minimal DC fuse (slow blow) | 2 x 40A | 2 x 40A | 100A | 125A | 175A | 300A | 400A |
Minimal cable size | 1,5m DC cable delivered as standard | 1,5m DCcable delivered as standard | 25mm2 | 35mm2 | 50mm2 | 95mm2 | 120mm2 |
Harmonic distortion typical | < 6% | < 6% | < 5% | < 5% | < 3% | < 3% | < 3% |
Cos phi | all power factors allowed | all power factors allowed | all power factors allowed | all power factors allowed | all power factors allowed | all power factors allowed | all power factors allowed |
Transfer system | n.a. | n.a. | n.a. | n.a. | n.a. | integrated, automatic (inverter to grid: 8~10 ms, grid to inverter: 16~50 ms). Not for parallel & 3-phase operation (external transfer system possible). | integrated, automatic (inverter to grid: 8~10 ms, grid to inverter: 16~50 ms). Not for parallel & 3-phase operation (external transfer system possible). |
Temperature range (ambient temp.) | 0°C to 40°C, derating power > 40°C | 0°C to 40°C, derating power > 40°C | -20°C to 40°C, derating power > 40°C | -20°C to 40°C, derating power > 40°C | -20°C to 40°C, derating power > 40°C | -20°C to 60°C, derating power > 40°C | -20°C to 60°C, derating power > 35°C |
Protection degree | IP23, vertical wall mounting | IP23, vertical wall mounting | IP21, horizontal wall mounting | IP21, horizontal wall mounting | IP21, horizontal wall mounting | IP21, horizontal wall mounting | IP21, horizontal wall mounting |
Protections | over-temperature, over load, short circuit, high/low battery voltage | over-temperature, over load, short circuit, high/low battery voltage | over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse) | over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse) | over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse) | over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse) | over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse) |
Cooling | natural/forced | natural/forced | temperature and load controlled fan | temperature and load controlled fan | temperature and load controlled fan | temperature and load controlled fan | temperature and load controlled fan |
MasterBus compatible | no | no | no | no | no | no | no |
