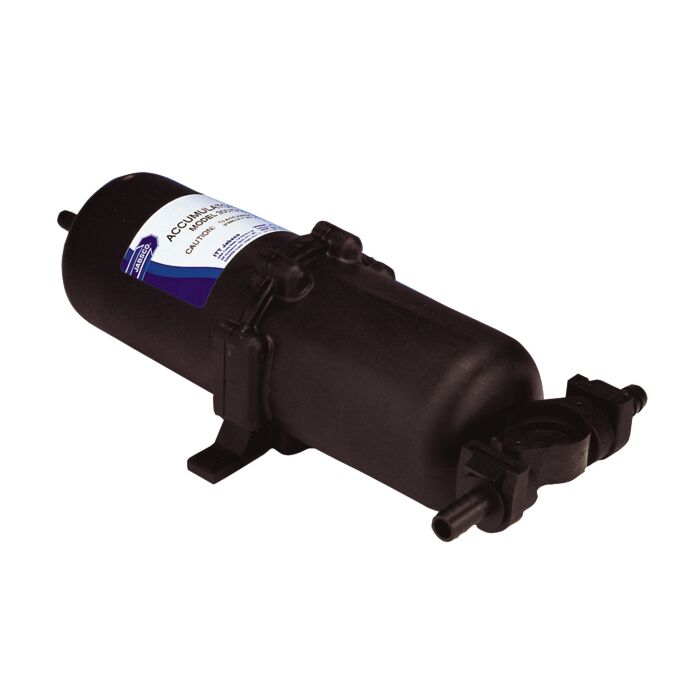

Jabsco 30573-0003 mini pressure tank

This accumulator tank is intended for installation in any pumped water system controlled by a pressure switch, and may also be used with air-driven pumps. The tank can serve as storage vessel as well as a pulsation dampener for pressurized fluid. The accumulator tank smooths water flow and reduces on/off switch cycling of the pump by lessening the variation in pressure and flow between the pump and the system discharge points. The even flow of water gives better control of hot water temperature with systems using instant water heaters.

PRE-CHARGE PRESSURE ADJUSTMENT

The accumulator tank is pre-charged at 10 psi (0.7 bar). If your pump electric pump cut-in pressure is significantly different you may adjust the tank pressure to better suit your particular installation. To increase air pressure in tank, shut pump off, open a faucet to relieve system pressure and adjust pressure using ordinary tire gauge and tire pump at valve in end of tank. Adjust pressure to be approximately 1-3 psi below turn-on pressure. Accumulator tank pressure should be checked at least twice a year to ensure proper operation.

Model No.: 30573-0003 Mini Accumulator Tank



Total Internal Volume 0.65 (Litres)

Air Fill Valve Standard automotive style tire valve

Max. Pressure 125 (psi) 8.6 (bar)

Dimensions 21.4x11.9 (cms)

Pre-Charged Pressure 0.7 (psi)

Weight 440 (g)

PRODUCT FEATURES

Internal bladder

Smoother flow

Quieter water system

Longer pump life

Easily fitted to new or existing systems

Compact size

Quick-connect/disconnect port flttings

Mounting point for optional pressure switch

Food grade materials, NSF Standard 18 listed
